MON-45   £238.00

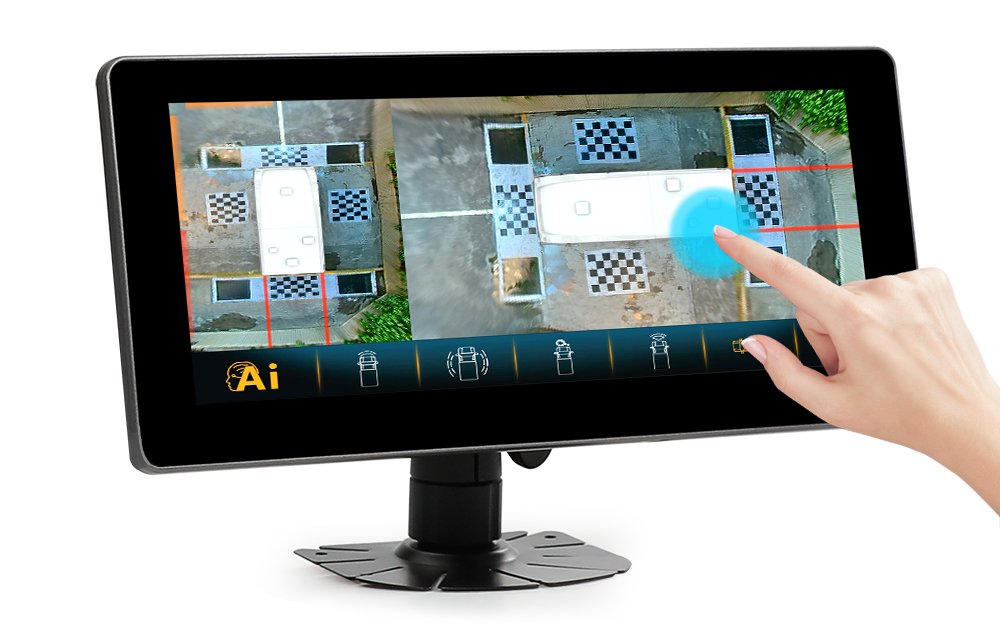

10.25" Touch Screen Wide View Monitor

10.25" full HD touch screen wide display supports UART / RS232 protocol. Specially designed for use with the 360 degree bird view camera system supporting MDVR. Touch control for 360 camerasystem with UART protocol and for MDVR device with RS232 protocol.

• ​Screen size:  10.25" IPS panel
• Resolution:   1920 x 720P
• Display Ratio:   8:3
• Screen touch type:   Capacitive touch screen
• Video input:   2 Channel AHD / CVBS / TVI (720P-1080P)
• Support dual protocol:   RS232 and UART
• Trigger control:   2CH RCA input
• Power input:   dc 9-32V
• Working current:   443mA at dc12v
• Built in light sensor to adjust panel brightness
• Working temperature: -20 to +80 degrees Centigrade

MON-45   £238.00
